3300×6000 mm² Low-E Glass Coating Line

•
•
•
•

• We are delivering a 3300 × 6000 mm² inline sputter Low-E glass coating line under a turnkey project model, with the scope of supply covering the Low-E coater, DI water system, cooling water system, and complete line integration services.
• An in-situ chamber inspection system and online adjustable magnetic bars provide real-time monitoring and adjustment of coating quality, supporting consistent product performance across different production locations.
• Selected cathodes use oxygen partial-pressure control (λ probe) or Plasma Emission Monitor (PEM) control, according to process requirements, to maintain stable sputtering conditions.
• Drop-in integrated components simplify operation and maintenance, with less manual work and shorter downtime during servicing.
• The complete coating line is designed and manufactured in accordance with CE certification requirements for international safety compliance.

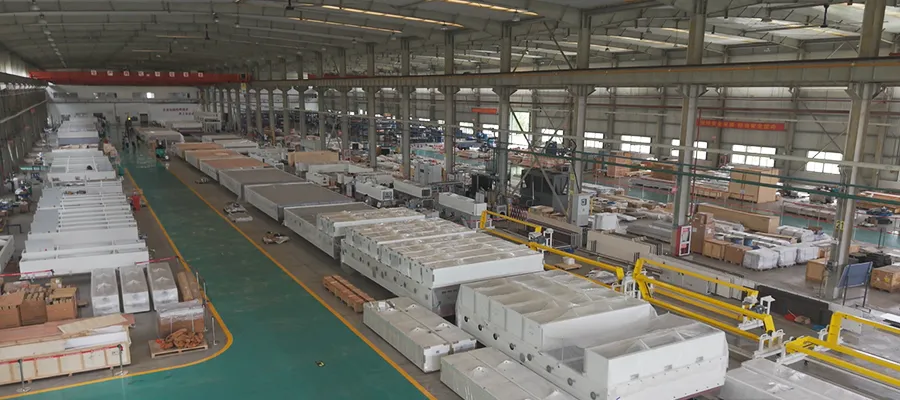

The project was signed in 2025, followed by development and manufacturing at our facility. In August 2026, the complete Low-E glass coating line successfully passed the customer’s Factory Acceptance Test (FAT). The line is now about to enter the on-site installation phase.

After delivery to the customer factory, the line will enter on-site installation and commissioning, supported by hands-on technical training and production support. The successful customer FAT provided key pre-shipment validation, confirming compliance with the quality and performance requirements of this international project.
